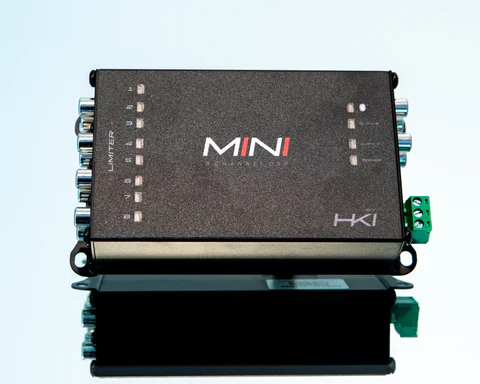

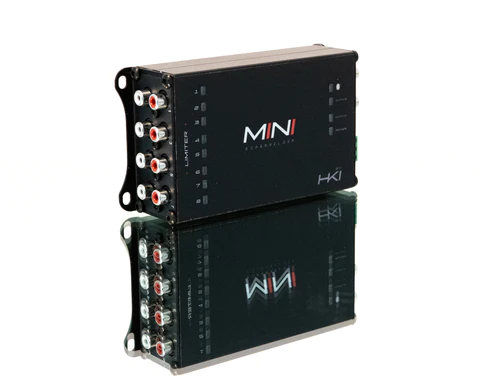

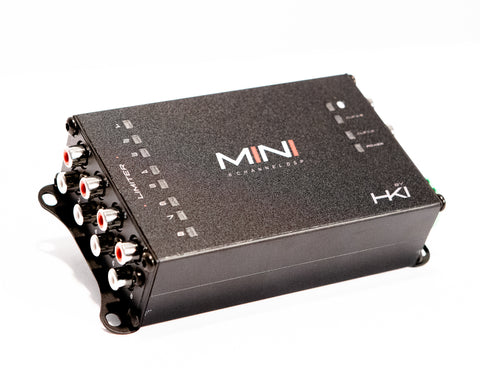

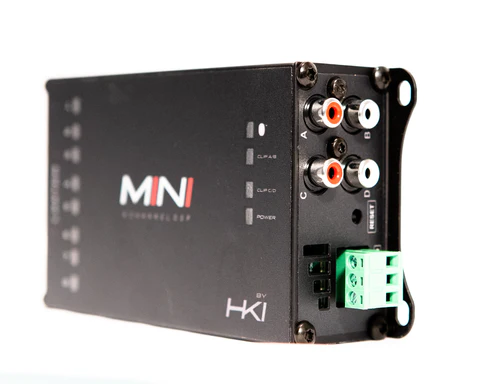

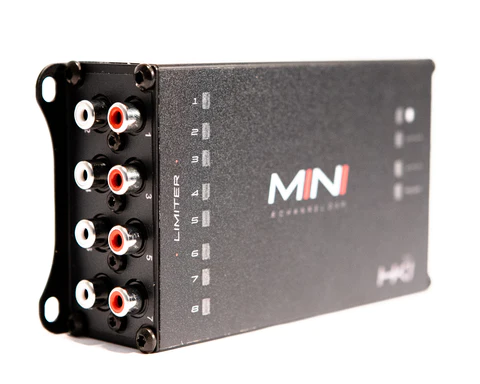

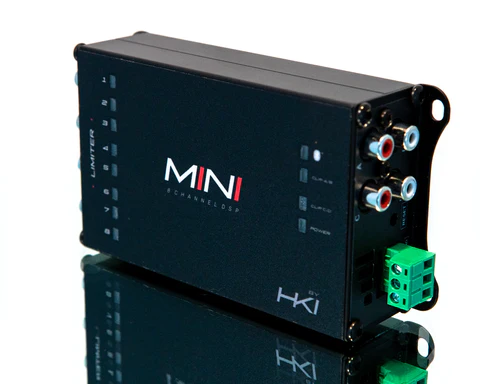

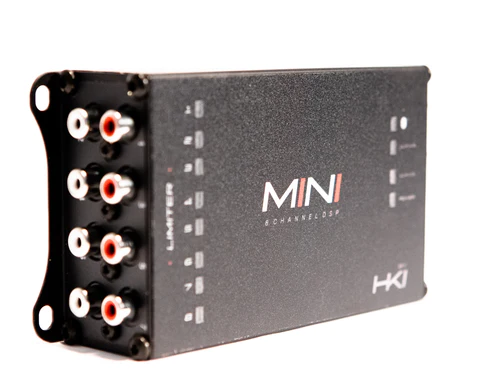

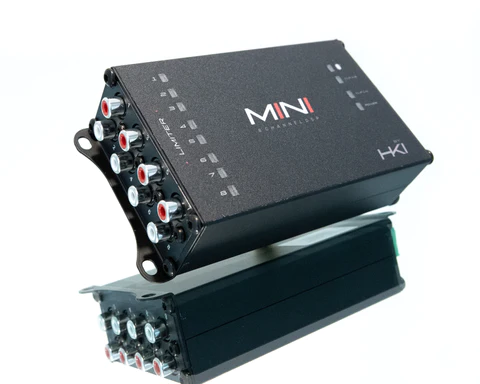

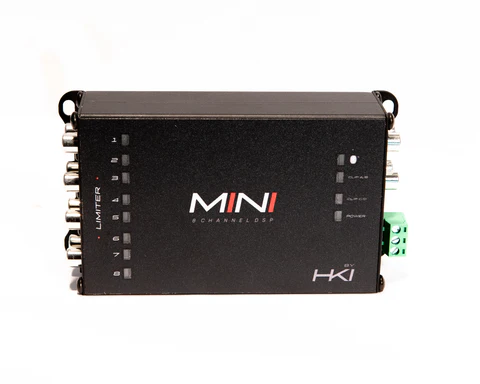

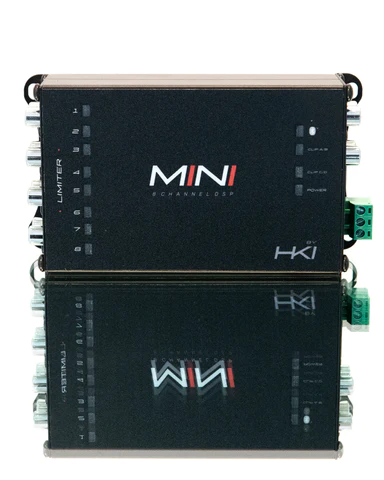

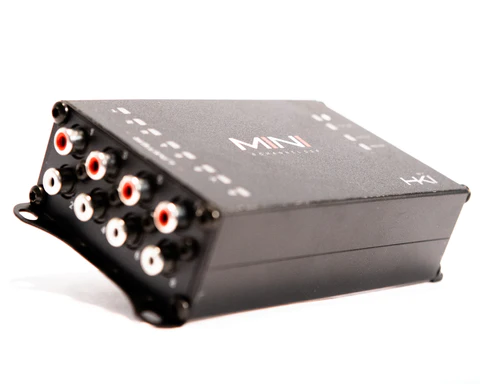

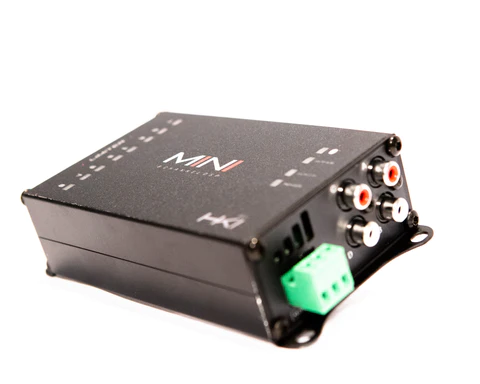

SounDigital HKI MINI - DIGITAL SOUND PROCESSOR - DSP

SounDigital HKI MINI - DIGITAL SOUND PROCESSOR - DSP

8-CHANNEL DIGITAL SOUND PROCESSOR

4 in / 8 out processor that is designed for smartphone programming, low level integration with enough EQ and adjustment capability to tune a majority of builds out there. We knew that this processor would find a home in multiple styles of builds, so we also had the board conformal coated to help protect it in less than ideal environments.

  • 8 Channel DSP
  • 4 Balances RCA Inputs
  • Max Input Level: 4Vrms(+14dBu)
  • Input Impedance: 100KΩ
  • 8 RCA Outputs
  • Max Output Level: 3.5Vrms(+13dBu)
  • Frequency Response: 10 Hz to 24 kHz (-1dB)
  • THD+N: <0.01%
  • Bit Rate: 32 Bits
  • Sampling Frequency: 96 kHz
  • Types of Crossovers: Linkwitz-Riley / Butterworth / Bessel (up to 48dB/oct)
  • Input EQ: 15 bands
  • Output EQ: 8 bands per channel (Q Factor: 0.6 to 0.99)
  • Time Alignment: 0 to 18.95ms
  • Limiter Threshold: -54 to +6 dB
  • Attack: 1 to 200 ms
  • Release: 1 to 988ms
  • Phase Control
  • 3 Presets
  • Dimensions: 5.9 x 4.3 x 1.7 inches

BC-DSPL-HD2

BC-DSPL-HD2

DSP with Radio reflash Interface for FLH & FLT 2014-2022

Flash the Factory Radio
Integration technology allows the DSP to reflash 2014 and up Harley factory radio for a flat response curve, without the need for external equipment. This reduces the cost, saves time, and allows installers to provide better service with complete control over the upgrade.

Digital Signal Processor + Interface
Enhance your sound system with a DSP that reflashes the OE radio and gives you full tuning control from the palm of your hand. Designed for easy integration with aftermarket or factory audio systems and easy expansion with amplifiers or other devices. Refer to the vehicle applications tab or chart for more information.

Important information
The Saddle Tramp DSP is a device that allows a user to flash the Harley-Davidson® radio to a 4-channel, flat audio output curve; but when the device is connected, it locks itself to the vehicle's identification number (VIN), saving the last known state of the radio into memory. In order to unlock the Saddle Tramp DSP and use it on a different vehicle, or return it, you must remove the flash from the motorcycle, returning the radio back to factory settings. This can only be done 3 times in total. In the event that this product needs to be returned to the manufacturer, it cannot be locked to a motorcycle's VIN.

Built-in Integration and Easy Installation
Designed for amplified and non-amplified models
Small footprint for easy installation behind the fairing
BC-9715 pre-wired harness included for ease of installation
Retains balance and fade control
Built-in clipping detection and limiting circuits
Bass knob included
Water-resistant case & connections
Micro-B USB updatable
Upgrade Your Music Experience and Customize Your Sound
6 channels of output from the DSP
15-band graphic EQ, or 5 band parametric EQ per channel
4 selectable crossover slopes (12, 24, 36, or 48db per octave)
Built-in selectable crossover per channel (high, low & band) to achieve the perfect sound
Independent equalization for front, rear, and subwoofer
Time delay circuit per channel (front and rear channels can be delayed independently up to 10ms)
All programming is done using the AXXESS DSP XL app on Android devices ONLY
Read, write, and store configurations for future recall
Optional password protection feature for tuning control via the mobile app
